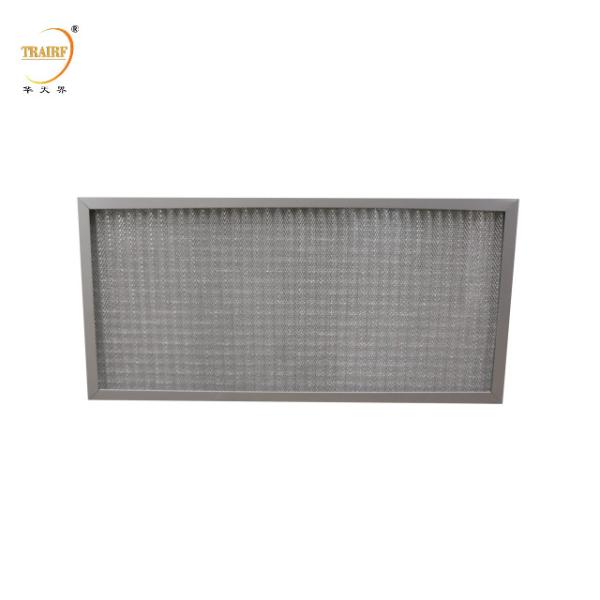

Aluminum Stainless Steel Washable Metal Mesh Air Conditioning Pre Air Filter
The primary filter is suitable for the primary filtration of air conditioning system. It is mainly used for filtering dust particles above 5μm. The primary filter has three styles: plate type, folding type and bag type. The outer frame materials include paper frame, aluminum frame and galvanized iron frame. The filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal hole mesh, etc., and the protective net has double-sided spray wire mesh and double-sided galvanized wire mesh.
Features:
* Color: sliver
* External Frame: Galvanized frame or aluminum frame
* Cheap price, thin thickness
* Large effective filtration area
* Easy to be installed
* Lower resistance
* Great dust holding capacity
Parameters
| Model | Outside dimensions(mm) | Rated air flow(m³/h) | Initial resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 40%weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1 | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
* Customizable size
Applications:
The use of air purifying systems is widespread across industries and residential areas, ranging from Clean-rooms, buildings, food industry to automobiles.
These systems can be implemented in over ventilation systems, air-conditioning systems, furnace systems, and much more.
It is evident that air systems are commonplace in areas such as industry, residential areas, and other locations, and will help to make our everyday lives and work safer and of higher quality.
